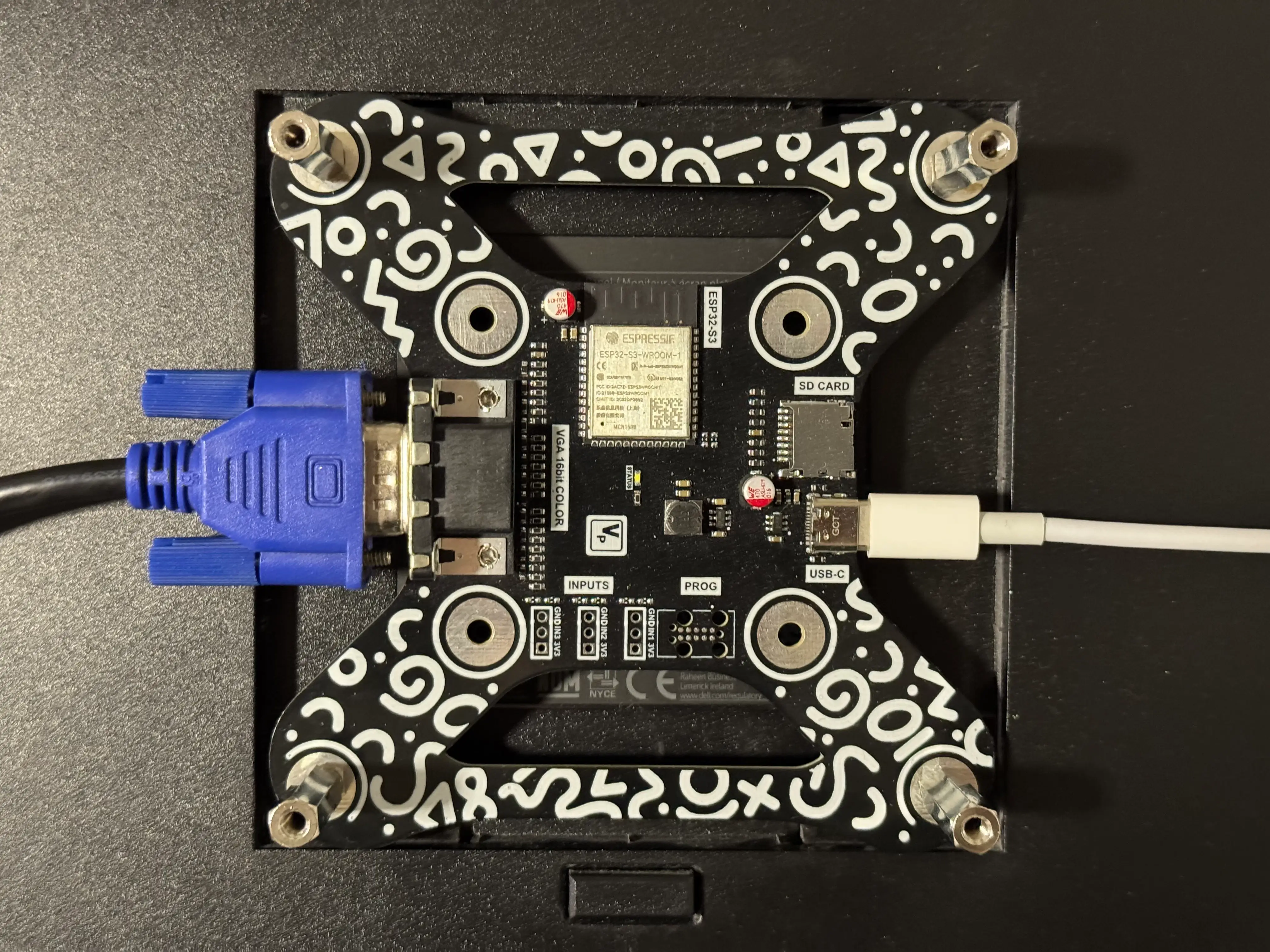

It is a VESA mountable ESP32-S3 with a VGA output - simply put.

The primary goal is to develop a microcontroller with VGA output β€” a notable achievement β€” that mounts on the back of monitors as a VESA-compatible device for a streamlined, space-saving design.

Image 1

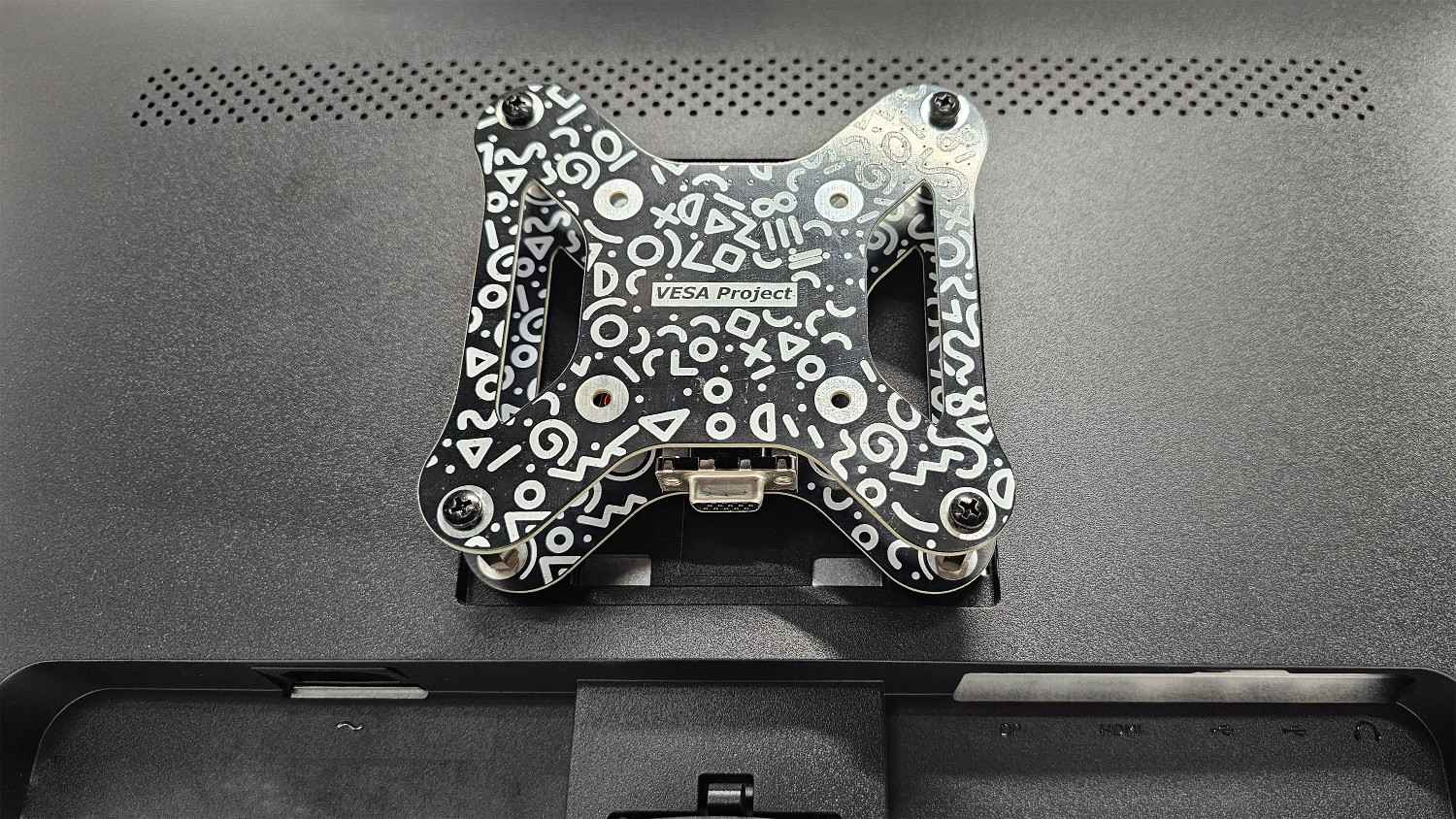

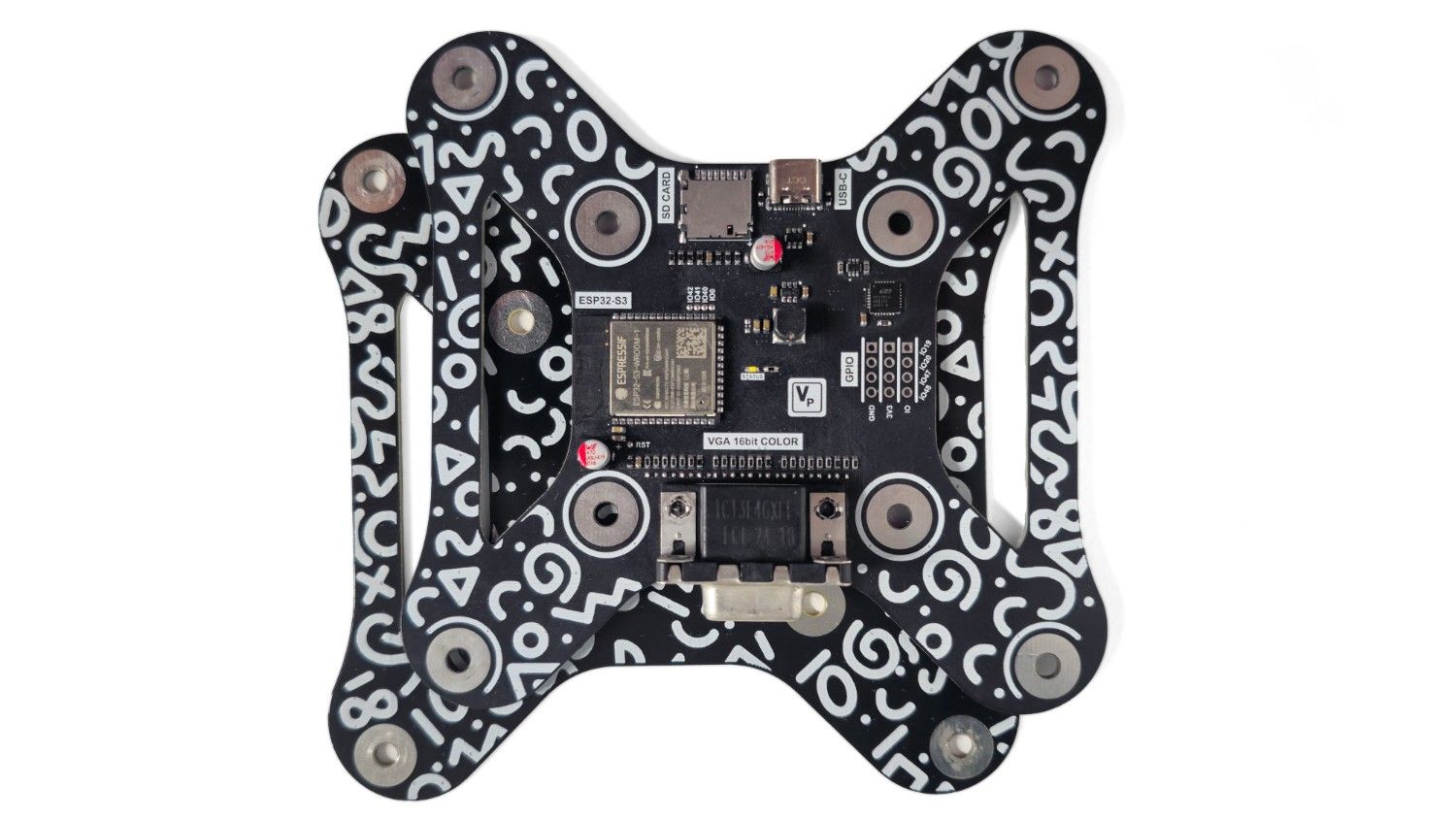

For practicality, it’s designed to mount on the back of monitors using a plate PCB compatible with VESA holders, ensuring a space-efficient setup.

Creating a ready-to-use firmware package is still in progress, but it wouldn't be possible without BitLuni!

He is the one who developed the ground breaking library, thus making the ESP32-S3 being able to output VGA.

Files
The GitHub project page can be found here. It contains all the schematic and PCB designs.

The ready-to-use code is still not available, but will be soon!

Media attention
HACKADAY.IO Page
Hackster page - Gareth Halfacree
Others soon...

Next steps...
- OSHW certificate
- Optimize it for manufacturing
- Try and sell it
